A type DT-10 copper lug cable lug copper connecting terminals sealed cable lugs

A type DT-10 copper lug cable lug copper connecting terminals sealed cable lugs

Place of Origin:
Zhejiang, China (Mainland)
Brand Name:
FANKE(connecting terminals )
Model Number:
DT-10
Type:
Crimp Terminal
Material:
copper
Certificate:
quality test report
Name:
Copper connecting terminals
screw hole:
8.5mm
Product name:
copper terminal connectore
Usage:
Connecting Cable
Size:
Standard
SupplyAbility:
100000000 Piece/Pieces per Month
Packaging Details
export standard packing carton.
Port
FOB NINGBO ,SHANGHAI
Lead Time
:
Shipped in 2 days after payment

 Welcome visit FANKE electric website, if any question please don’t hesitated contact us.  We are very glad to reply you .^_^

1. SPEC. DT-10 A type copper terminal connector/ connecting terminals  .
   (1) High quality,competitive price.
   (2) Customizable some different copper connector.
   (3) flexible and conductive
   (4) Made by high purity copper
   (5) Tin plating:Corrosion Resistance
Noted: DT series have copper and tin plating copper for choice
Please check the size of A type and B type .  A type is thickness than B type.You can choose which you need.^_^ Then contact us.

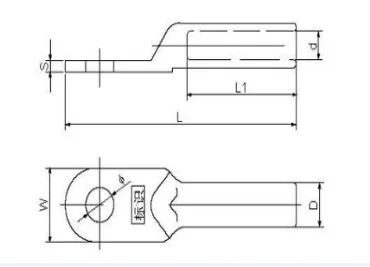

A Type Screw hole Plate Plate Pipe Inner Dia. Pipe External Dia. Threading depth Length
width thickness
Spec Φ W S d D L1 L
DT-10 8.5 16 2.3 5.2 9 30 63
DT-16 8.5 16 2.5 6.2 10 32 66
DT-25 8.5 18 2.8 7.2 11 35 70
DT-35 10.5 20.5 3 8.5 12 37 78
DT-50 10.5 23 3.5 9.7 14 41 85
DT-70 12.5 26 3.8 11.5 16 45 93
DT-95 12.5 28 4.5 13.5 18 49 104
DT-120 14.5 30 5 15.1 20 51 112
DT-150 14.5 34 5.4 16.5 22 54 117
DT-185 17 37 5.8 18.5 25 58 125
DT-240 17 40 6.5 20.7 27 60 135
DT-300 21 46 8 23.2 30 68 155
DT-400 21 50 8 26.2 34 74 165
DT-500 21 60 8 29.5 38 75 190
DT-630 none 78 10 34.5 45 85 220



B Type Screw hole Plate Plate Pipe diameter Pipe External Dia. Threading depth Length
width thickness
Spec Φ W (mm) S (mm) d (mm) D L1 L
DT-10 8.5 14.5 1.8 5.2 8 28 58
DT-16 8.5 14.5 2 6.2 9 30 60
DT-25 8.5 16 2.4 7.2 10 30 65
DT-35 10.5 18 2.6 8.5 11 32 70
DT-50 10.5 20.5 3 9.7 13 35 75
DT-70 12.5 23 3.1 11.5 15 40 85
DT-95 12.5 26 3.4 13.5 17 41 91
DT-120 14.5 28 3.7 15.1 19 44 96
DT-150 14.5 30 4 16.5 21 46 100
DT-185 17 33 4.2 18.5 24 50 110
DT-240 17 35 4.5 20.7 26 55 120
DT-300 21 42 5.5 23.2 29 62 138
DT-400 21 50 8 26.2 34 74 163
DT-500 21 55 8 29.5 38 73 175
DT-630 21 60 10 34.5 45 80 205



2.Picture Details.

3. Lead time .



We have a lot of stock ,  If not very big quantity, we can send the goods as soon as possible after recieve payment.    If big quanity, the lead time need according to the quantity.



4. Shipping term.



If small quantity, usually send by courier (DHL,FEDEX,TNT and so on) .    If big quantity, we advice ship by air or by sea. this will use longer time , but cheaper fees. We are near NINGBO and SHANGHAI port.





5.Our service



(1) Free samples to test the quality.



(2) Very competitive price .



(3) Pack according to customer’s requirement.



(4) Customizable different copper cable lug.



(5) Good quality, fast lead time.



Any problem, please don’t hesitated to contact us! ^_^
